1. Using
traction drive machine

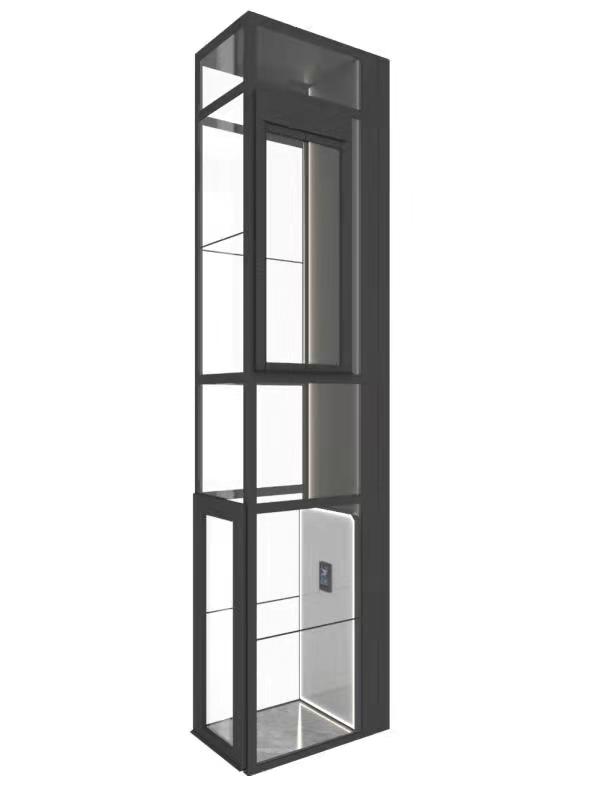

2. Integrated
with lift running shaft
3. Manual
opening door
4. Max.
capacity 320kg
5. Max.
speed: 0.3m/s

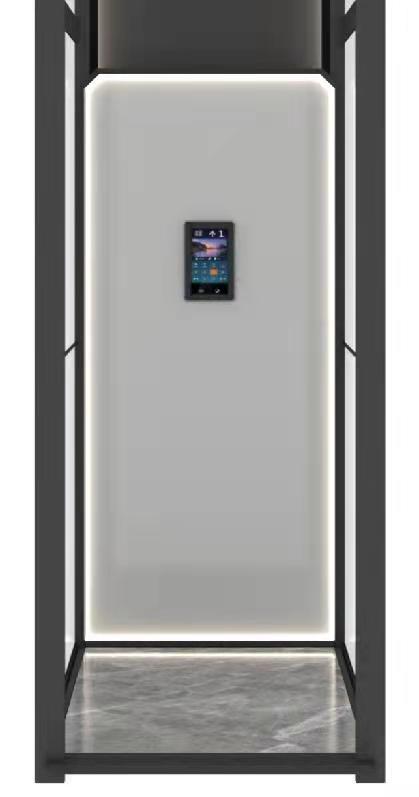

6. On
the platform, with rear wall only on which locate the car operating panel
7. Reference
dimensions:
8. Shaft
size occupation
area (including shaft structure): W1250*D1300 (mm)
9. Max.
platform size: W1100*D900 (mm)
10. Overhead
>=2600mm
11. Pit
>=200mm
12. Door
size: W800*H2000 manual door
13. With ELD
