LGS Villa

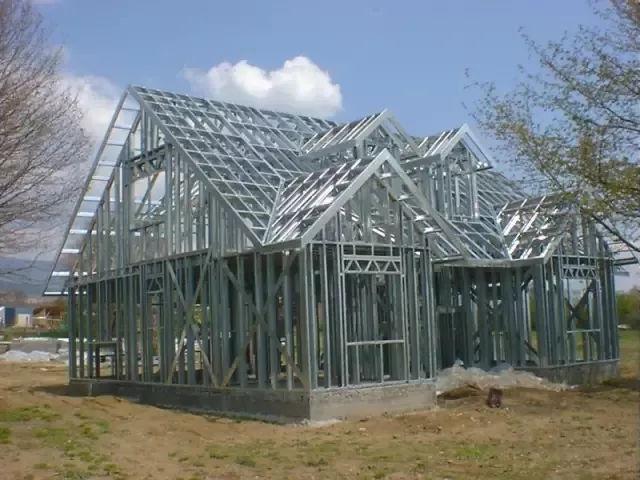

The main frame of the building is constructed with 150g aluminized zinc layer and yield strength G550, which is durable and strong.

Light steel villas have the following characteristics:

• 1. Anti-seismic property

  The roof structure adopts the triangular roof truss system made of cold-formed steel members. After sealing the structural plates and gypsum boards, the steel structural components form a very strong "plate-rib structure system", which greatly improves the ability of resisting horizontal and vertical loads. This structure system has stronger ability of resisting seismic and horizontal loads, and is suitable for areas with seismic intensity over 8 degrees.

• 2. Wind resistance

  Light steel structure building has light weight, high strength, good overall rigidity and strong deformation capacity. The building's self-weight is only one fifth of that of the brick-concrete structure. It can withstand the hurricane of 70 meters per second, so that life and property can be effectively protected.

• 3. Durability

  The steel structure of Cornerstone Light Steel Villa is composed of cold-formed thin-walled steel components. The steel frame is made of super-anticorrosive high strength cold-rolled hot-dipped aluminum-galvanized steel plate. Self-tapping screw is used in assembly and welding technology is not used to effectively protect the integrity of zinc film. Therefore, the corrosion resistance is excellent. In addition, all the structural parts are sealed in impermeable composite walls, so they will not corrode or be non-corroded. It will mildew and not be afraid of worms. The service life of buildings can reach more than 100 years.

• 4. Energy saving

  Glass fiber cotton is the main thermal insulation material, which has good thermal insulation effect. With the thermal insulation board of the external wall, the phenomenon of "cold bridge" of the wall is effectively avoided, and the better thermal insulation effect is achieved. The thermal resistance value of R15 thermal insulation cotton about 100 mm thick can be equivalent to that of brick wall about 1 m thick. The thermal resistance of 200 mm thick composite wall can reach 3.2 m2K/W, which is 11 times of that of brick wall with equal thickness.

• 5. Acoustical insulation

  It is an important index to evaluate the sound insulation effect of house. All the windows of the house are insulated with hollow glass, which has good sound insulation effect, and the sound insulation effect is over 40 db. The wall composed of steel keel and heat preservation material gypsum board has sound insulation effect as high as 60 db.

• 6. Fire resistance

  According to different design fire-resistant time can reach 1-4 hours, the fire-resistant grade of light steel villas can meet different building functional requirements, for general unimportant projects can meet grade 3 and 4 fire-resistant grades, for important buildings, the fire-resistant grade of houses can reach grade 1 and grade 2 by strengthening the structure (using fire-proof plates). (Refractory Grade Index and Requirements Refer to Code for Fire Protection in Architectural Design)

• 7. Comfortable

  The light steel wall adopts high efficiency and energy saving system, which has breathing function and can adjust indoor air dry and humidity. The roof has ventilation function, which can form a flowing air room over the interior of the roof, and ensure the ventilation and heat dissipation demand of the interior of the roof. It takes 40 years for concrete to be completely dry, so it is easy to cause indoor humidity and dampness, which is not conducive to human health.

• 8. Integrated Decoration from inside and out

  Light steel villas create for you the interior and exterior decoration one-time completion which saves you from the trouble of rushing around to buy materials. And steel structural parts can easily achieve a variety of complex shapes, to meet the needs of a variety of architectural styles.

• 9. Environmental protection

  Compared with brick-concrete residential buildings, it can avoid the waste of resources caused by burning bricks with earth, and steel structural materials can be recycled 100%. Most of the other supporting materials can be recycled too, so as to truly achieve green and pollution-free.

  The combination scheme of wall and roof with excellent performance adopts new materials of heat preservation and insulation. The energy required for heating and cooling can be 65% more energy-saving than that of traditional buildings. Dry construction method will not waste water resources and save labor costs.

• 10. Lessened construction duration

  All the building materials of the whole assembled house can be manufactured and prefabricated in the factory. The industrialization degree is high. There is no wet operation on site. The standardization operation is simple and fast. It saves 2/3 of the construction period compared with the traditional structure. The average construction period of the traditional brick-concrete house is about 6 months (still only the raw finished house). The light steel villas are generally 2 months (the interior and exterior of walls have been completed, only need to buy furniture, appliances for the kitchen, the restroom and other rooms)

• 11. Suitable for a wide range of land situations and getting more living space

  With the new steel structure framework, light weight, high strength, the overall weight of the house is only about 1/5 of the traditional brick-concrete structure, so no additional lifting equipment is needed, manual handling and installation can be solved. At the same time, the foundation load is small and suitable for construction in various geological conditions. Standardized dry work construction is not affected by weather and season, and uninterrupted construction is realized throughout the year. Due to the use of excellent insulation, sound insulation and energy-saving materials, the wall structure becomes compact, and the pipeline is built-in, which effectively improves the use area of the house, and can increase the use area by 5%-13% compared with conventional brick mixtures.




* Please Contact Us to get more products information!
